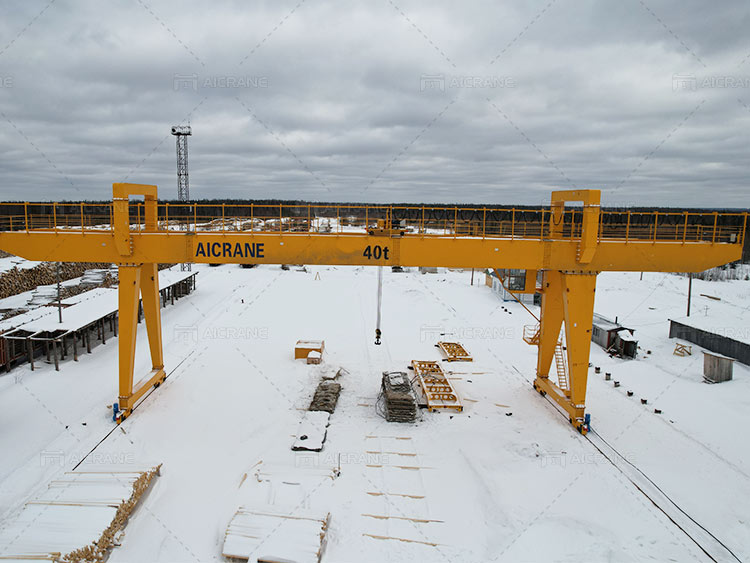

When it comes to material handling, selecting the right gantry crane is one of the most important decisions you’ll make. Gantry cranes are essential equipment for lifting and transporting heavy loads in various industries, from manufacturing plants to shipyards. The key to optimizing operations and ensuring safety is choosing a gantry crane with the appropriate lifting capacity for your needs.

This article will guide you through the critical factors to consider when selecting the right gantry crane capacity for material handling, including the types of gantry cranes, load types, work environment, and operational requirements. Additionally, we will explore different gantry crane capacities such as 10-ton, 20-ton, 30-ton, 50-ton, and more, providing real-world examples of their applications.

1. Understanding Gantry Cranes

Before diving into the specifics of capacity, let’s briefly define what a gantry crane is and how it works. A gantry crane consists of a bridge supported by legs that run on tracks. These cranes can move both horizontally (along the tracks) and vertically (raising or lowering the load). The lifting mechanism, which typically includes a hoist or trolley, is designed to carry and move heavy loads efficiently.

Gantry cranes are commonly used in outdoor and indoor applications where the movement of heavy equipment or materials is required. They come in various configurations, including single-girder, double-girder, and rubber-tyred gantry cranes, each offering distinct advantages for specific lifting tasks.

2. Determining the Required Lifting Capacity

The first and most obvious factor in choosing the right gantry crane is determining the lifting capacity. The lifting capacity refers to the maximum load the crane can safely handle. It’s crucial to select a crane that meets the demands of your operations without exceeding safety limits.

To determine the required lifting capacity for your gantry crane, you need to consider several factors:

2.1 Maximum Load Weight

The most straightforward factor in determining the crane’s capacity is the weight of the heaviest object or material that will be lifted. For example, if you’re handling large steel beams, you must ensure the gantry crane can handle the combined weight of the beams and any lifting equipment.

2.2 Dynamic Load Considerations

In many cases, cranes are not only lifting static loads but also dynamic loads, meaning that the crane will encounter forces beyond the actual weight of the load due to acceleration or deceleration during lifting and transportation. A safety margin is typically added to the capacity to account for these forces. This ensures that the crane can handle the dynamic load safely without undue strain on its components.

2.3 Load Distribution

The way a load is distributed also affects the crane’s lifting capacity. If the load is unevenly distributed, it may cause additional stress on the crane’s lifting components, potentially leading to failure. In such cases, you may need to choose a crane with a higher capacity or additional safety features to ensure proper load distribution.

2.4 Frequency of Lifting Operations

The frequency of lifting operations can impact the required crane capacity. If your crane will be frequently lifting heavy loads in high-cycle environments (e.g., in manufacturing or logistics), it’s advisable to choose a crane with a higher lifting capacity and a higher duty cycle rating to ensure its longevity and reliability.

3. Factors Influencing Crane Capacity Selection

Once you’ve determined the maximum weight your crane will need to lift, several other factors influence the choice of gantry crane capacity. Let’s explore these factors in more detail.

3.1 The Nature of the Load

Different types of materials require different approaches to lifting and handling. The type of load being lifted can significantly affect the crane’s capacity requirements. For instance:

• Heavy Machinery and Equipment: When lifting large machinery or equipment, not only is the weight a consideration but also the dimensions and shape of the load. Some loads may be bulky, requiring more space for safe transportation.

• Steel or Metal Components: Metal components like steel beams or coils may have concentrated weight, which could cause stress on the crane’s lifting mechanism. The crane must be equipped to handle such concentrated loads.

• Loose or Fragile Materials: Lifting fragile or loose materials like glass or ceramics requires a crane that offers smooth, controlled movements to avoid breakage.

For each specific type of load, you’ll need to adjust the crane’s lifting capacity, ensuring it meets the material’s specific handling needs without overloading or risking safety.

3.2 Work Environment

The operational environment is another critical factor in determining the right gantry crane capacity. Factors like space limitations, weather conditions, and the type of terrain should be taken into account:

• Indoor vs. Outdoor Use: Outdoor cranes, such as rubber tyred gantry cranes (RTG), often need higher lifting capacities and more robust construction due to exposure to harsh weather conditions. In contrast, indoor cranes may be lighter and designed for more controlled environments.

• Space Limitations: In confined or narrow spaces, choosing a crane with a higher lifting capacity may not be practical. In such cases, a compact and lightweight gantry crane with a lower capacity may be the best choice.

• Wind and Weather: For outdoor operations, especially in shipyards or construction sites, the crane’s stability under windy or adverse weather conditions is crucial. Some gantry cranes are designed with enhanced stability features to withstand such challenges.

3.3 Crane Mobility and Maneuverability

Depending on your facility’s layout and the materials being handled, you may need a gantry crane with specific mobility features:

• Fixed or Portable Cranes: If the crane needs to move across a wide area, a portable gantry crane with a higher capacity may be necessary. However, portable cranes are typically designed for lighter lifting capacities.

• Track-Mounted vs. Rubber-Tyred Gantry Cranes: For industries that need to move materials across large, open spaces, rubber-tyred gantry cranes (RTG) are often a good choice. They offer high mobility but may need a larger lifting capacity for heavy-duty tasks.

• Single-Girder vs. Double-Girder Cranes: Single-girder gantry cranes are suitable for lighter-duty tasks, whereas double-girder cranes can handle heavier loads due to their increased stability and lifting capacity.

3.4 Safety Features

When selecting a gantry crane, you must also consider the safety features available. Overloading a crane can result in catastrophic failure, so it’s essential to ensure that the crane has built-in safety mechanisms to prevent this. Some cranes come with overload protection systems, emergency stop buttons, and stability features to reduce the risk of accidents.

4. Common Gantry Crane Capacities and Their Applications

Different industries have varying material handling requirements, and as such, the required gantry crane capacity can range from a few tons to several hundred tons. Let’s take a closer look at some common gantry crane capacities and their real-world applications.

4.1 10-Ton Gantry Crane

A 10-ton gantry crane is often used for light to medium-duty tasks. This capacity is ideal for handling materials like small machinery, steel parts, and pallets of goods in factories, warehouses, and workshops.

• Example Application: A 10 ton gantry crane might be used in a small manufacturing facility to lift parts for assembly or move materials around the shop floor. It is suitable for handling loads such as equipment, light components, and machinery.

4.2 20-Ton Gantry Crane

A 20-ton gantry crane is more versatile and can be used for handling larger loads in industrial settings. It’s commonly used in medium-duty applications in warehouses, workshops, and construction sites.

• Example Application: A 20-ton crane might be employed in a steel fabrication shop to lift steel beams or other structural components. It can also be used in a warehouse to load and unload heavier materials onto trucks or other transportation equipment.

4.3 30-Ton Gantry Crane

The 30-ton gantry crane is a reliable choice for heavy-duty tasks that require lifting even larger loads, often found in manufacturing plants, shipyards, and construction sites.

• Example Application: A 30-ton gantry crane is ideal for lifting large machinery, heavy equipment, or steel beams in a construction site. For instance, it could be used in a shipyard for the assembly or disassembly of ship components.

4.4 50-Ton Gantry Crane

A 50-ton gantry crane is suitable for very heavy-duty material handling and is often found in industries such as aerospace, heavy equipment manufacturing, and large-scale construction projects. This capacity can handle large, bulky loads, such as heavy machinery, industrial components, and structural beams.

• Example Application: A 50-ton gantry crane could be used in a power plant construction site to move large turbines or generators. It may also be used in steel mills for lifting large billets or slabs.

4.5 100-Ton and Above Gantry Cranes

For ultra-heavy-duty lifting applications, gantry cranes with capacities of 100 tons or more are required. These cranes are often used in large-scale industrial, manufacturing, and shipping applications where exceptionally heavy equipment or materials need to be lifted and moved.

• Example Application: A 100 ton gantry crane could be used in a steel mill to move large sections of steel or in a shipyard for lifting entire hulls or other large ship components. These cranes are also utilized in power plants or heavy machinery facilities to move turbines, boilers, or large industrial units.

5. Understanding Crane Duty Cycle and Duty Class

A crane’s duty cycle refers to the frequency of use, which is categorized into classes. The duty cycle directly impacts the crane’s operational capacity and lifespan. Common duty classes include:

• Light Duty (A1-A3): Suitable for occasional lifting with lower lifting capacity.

• Medium Duty (A4-A6): Common for general material handling in industrial settings.

• Heavy Duty (A7-A8): Designed for continuous, high-cycle use in demanding environments.

Choosing the appropriate duty cycle is essential for ensuring the crane can handle the expected workload without undue wear and tear.

6. Conclusion

Selecting the right gantry crane capacity for material handling involves more than just choosing the crane with the highest lifting capacity. It requires a deep understanding of the load type, work environment, frequency of use, and safety requirements. By considering these factors and working with experienced crane manufacturers, you can ensure that your gantry crane is both efficient and safe, enhancing the overall productivity of your material handling operations.

Whether you’re working with a 10-ton crane for small workshop tasks, a 50-ton crane for heavy-duty industrial lifting, or something in between, ensuring the right capacity will make all the difference in maintaining a safe, efficient, and cost-effective operation. When in doubt, it’s always a good idea to consult with crane experts who can help you make an informed decision and customize the crane to suit your specific requirements.

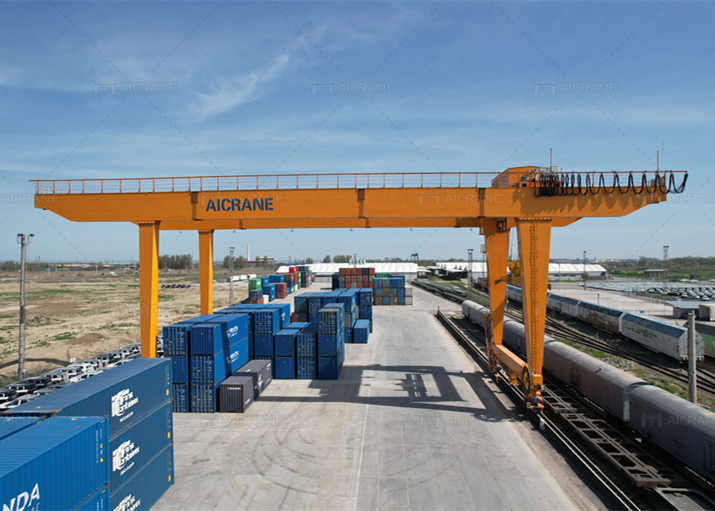

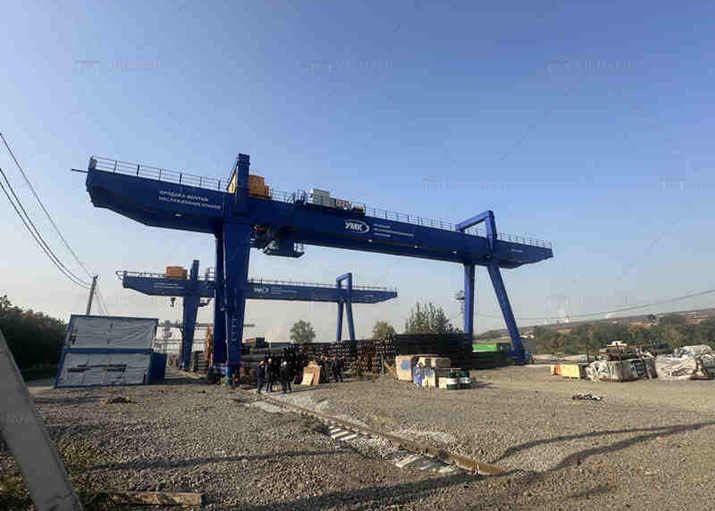

Purchasing a rail mounted gantry crane (RMG crane) represents a significant investment for many industries, including shipping, logistics, and manufacturing. Ensuring you negotiate a reasonable price not only helps you optimize costs but also secures a high-quality crane that meets your specific needs. Here are essential tips to help you negotiate effectively with agents to obtain the best rail mounted gantry crane price.

Conduct Thorough Market Research

Before initiating negotiations, gather comprehensive information about rail mounted gantry cranes. Understand the market rates, major gantry crane manufacturers, and price trends for different crane specifications. This knowledge equips you to identify whether an agent’s quoted gantry crane price is fair or inflated.

Action Steps:
Explore the websites of major RMG crane suppliers.
Read industry reviews and case studies.
Compare price ranges for various crane capacities and features.

Clearly Define Your Requirements

Agents can provide more accurate pricing if they understand your specific needs. Outline your requirements in terms of load capacity, span, lifting height, and additional features like anti-sway technology or automation.

Benefits of Specification Clarity:
Avoids unnecessary add-ons that increase costs.
Streamlines communication, saving time for both parties.
Positions you as a serious buyer, which can motivate agents to offer better deals.

Ask for Detailed Price Breakdowns

Request a comprehensive quote that separates costs for individual components and services, such as:
The crane itself.
Installation and commissioning.
After-sales services and warranties.
Delivery charges.

Understanding how the total rail mounted gantry crane price is structured allows you to identify areas where you can negotiate, such as waiving delivery fees or extending warranty periods.

Leverage Bulk Orders or Repeat Purchases

If your company plans to purchase multiple cranes or has a history of working with the same supplier, use this to your advantage. Agents are more likely to provide discounts for bulk orders or reward loyal customers with favorable terms.

Key Points to Mention:
“We have similar orders planned for the future.”
“We’ve been satisfied with previous purchases and would like to continue our partnership.”

Highlight Your Budget Constraints

Transparency about your budget can encourage agents to offer you the most cost-effective solution. Explain your financial limits and emphasize the importance of staying within budget. This approach can often lead agents to suggest tailored options or promotions that align with your price range.

Discuss Payment Terms

Negotiating payment terms can significantly impact your overall cost. Many suppliers offer flexible options, such as installment payments, deferred payment schedules, or discounts for upfront payments.

Tips for Payment Negotiation:
Ask about discounts for early payment.
Propose milestone payments linked to project completion stages.
Request leniency for longer payment terms to improve cash flow.

Request Add-Ons or Upgrades as Incentives

If an agent is unwilling to reduce the price directly, ask for additional services or features to be included at no extra cost. These might include:
Extended warranty periods.
Free training sessions for operators.
Complimentary spare parts.

Such value-added benefits can enhance the overall deal without compromising the crane’s quality.

Verify the Agent’s Credibility

Dealing with a reputable agent ensures that you are getting a fair deal and reliable equipment. Check the agent’s track record, certifications, and customer reviews before proceeding with negotiations.

Questions to Ask:
“Can you provide references from previous clients?”
“What is your experience in selling rail mounted gantry cranes?”

Highlight Competition

Let agents know you’re exploring multiple options. Mentioning competitors can motivate agents to offer better prices or terms to secure your business.

Example Phrases:
“I’ve received a competitive quote from another supplier offering similar specifications.”
“Can you match or beat this offer?”

Be Prepared to Walk Away

Agents often rely on the buyer’s eagerness to close the deal. Demonstrate that you are willing to explore other options if their price doesn’t align with your expectations. This tactic can push the agent to reconsider and offer a more reasonable rail mounted gantry crane price.

Understand Regional Market Dynamics

Prices can vary based on location due to factors such as labor costs, local taxes, and shipping expenses. Researching regional dynamics allows you to understand price variations and negotiate accordingly.

Finalize a Comprehensive Contract

Once a reasonable price is agreed upon, ensure the terms are clearly outlined in a detailed contract. Include:
Final price and payment terms.
Delivery timeline.
Warranty and after-sales service commitments.

Review the contract carefully to avoid hidden costs or unfavorable terms.

Negotiating a fair rail mounted gantry crane price requires a combination of preparation, effective communication, and strategic negotiation. By conducting thorough research, defining your needs, and leveraging market knowledge, you can secure a high-quality crane that fits your budget and operational requirements. Remember, the key to successful negotiation is a win-win outcome that benefits both you and the agent. Aicrane provides rail mounted gantry crane with reasonable price. You can contact us to get the product you need.

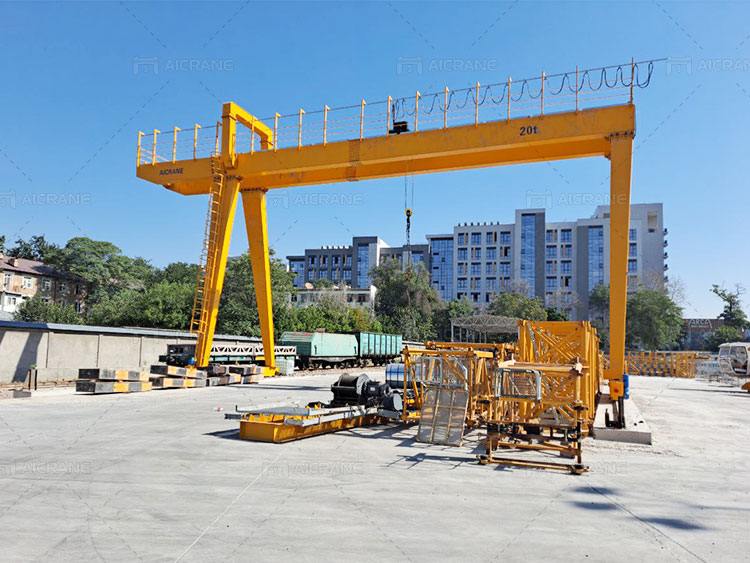

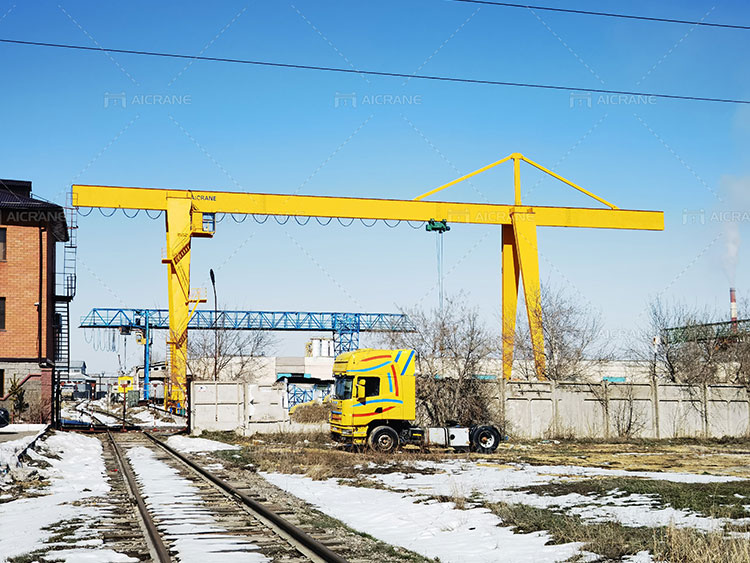

Purchasing a 20-ton gantry crane is a significant investment for any business, whether for industrial, construction, or logistics applications. A gantry crane of this capacity offers versatility, efficiency, and the ability to handle heavy loads, making it an essential tool for operations involving material handling. However, cost considerations play a critical role in ensuring you get the best value for your investment without compromising on quality or functionality. This article outlines the key factors influencing the cost of a 20-ton gantry crane and how to navigate these considerations effectively.

1. Initial Purchase Price

The upfront cost of a gantry crane 20 ton depends on factors such as the type, design, and brand. Gantry cranes are available in various configurations, including single-girder, double-girder, and portable models. Double-girder designs generally cost more due to their enhanced lifting capacity and suitability for heavy-duty applications. Additionally, opting for a European-standard crane with advanced features and superior build quality may result in a higher price.

While it is tempting to choose the lowest-priced option, it is crucial to evaluate the crane’s specifications and quality. Investing in a robust and reliable crane can reduce long-term operational and maintenance costs, making it more cost-effective over time.

2. Customization Requirements

Many 20-ton gantry cranes are customizable to meet specific operational needs. Factors such as span, lifting height, cantilever length, and work duty class can be tailored to your project requirements. Customizations like specialized lifting mechanisms, additional safety features, or integration with automated systems can significantly influence the gantry crane cost.

For instance, a standard gantry crane with a fixed span and lifting height may be more affordable than one with an extended cantilever or additional height clearance. It’s essential to carefully evaluate your operational needs and balance customization with budget constraints.

3. Material and Build Quality

The materials used in the construction of the crane significantly impact its cost. High-quality steel and components designed for durability and heavy-duty applications generally come at a premium. However, these materials ensure the crane’s longevity, safety, and reliability, reducing the likelihood of costly repairs or replacements in the future.

When assessing material quality, consider the crane’s operating environment. For example, if the crane will be used in a corrosive or high-moisture environment, opting for corrosion-resistant materials or protective coatings might increase the initial cost but extend the crane’s lifespan.

4. Installation and Assembly Costs

Installation is another critical cost consideration when purchasing a 20-ton gantry crane. The complexity of the installation process depends on the crane’s size, design, and site conditions. Larger double girder gantry cranes typically require professional installation teams and specialized equipment, which can increase costs.

It’s advisable to work with manufacturers or suppliers who offer comprehensive installation services, including online or on-site guidance. Clear installation instructions or support can prevent delays and ensure the crane is set up safely and efficiently.

5. Power Supply and Control Systems

The type of power supply and control system also influences the crane’s cost. Gantry cranes can be equipped with electric, hydraulic, or manual systems. Electric systems with advanced features, such as remote control or variable frequency drives, tend to be more expensive but offer superior control and efficiency.

When evaluating power options, consider the long-term operational costs, such as energy consumption and maintenance. Choosing an energy-efficient system may involve a higher initial investment but can result in significant savings over time.

6. Shipping and Delivery Costs

Transportation costs can vary widely depending on the crane’s size, weight, and destination. International shipping often involves additional expenses, such as customs duties, taxes, and freight charges. Some manufacturers include shipping costs in their quotes, while others require separate arrangements.

To minimize shipping expenses, consider sourcing the crane from a supplier with a regional presence or partnerships with local distributors. Additionally, ensure the packaging and transportation method protects the crane from damage during transit.

7. Maintenance and Lifecycle Costs

The total cost of owning a 20-ton gantry crane extends beyond the purchase price. Maintenance, repairs, and eventual replacement parts contribute to the crane’s lifecycle costs. Choosing a crane with readily available spare parts and accessible service support can significantly reduce downtime and maintenance expenses.

Additionally, opting for a high-quality crane with a reliable warranty and after-sales service can provide peace of mind and protect your investment. Some manufacturers also offer maintenance packages, which can help you budget for ongoing expenses.

8. Regulatory Compliance and Safety Standards

Ensuring the crane meets local safety regulations and standards may involve additional costs. Compliance might require specific certifications, such as CE marking in Europe or ANSI standards in the United States. These certifications guarantee that the crane adheres to stringent safety and quality criteria.

While compliance may increase the initial cost, it minimizes the risk of accidents, liability issues, and operational disruptions, making it a worthwhile investment.

9. Supplier Reputation and Support

Working with a reputable gantry crane supplier can make a significant difference in your purchasing experience. Established manufacturers often provide better quality assurance, professional installation services, and comprehensive after-sales support. While such suppliers may charge a premium, the added value and reliability often justify the higher price.

Before finalizing a purchase, research the supplier’s track record, customer reviews, and service offerings. Request detailed quotes and compare them to ensure transparency and value for money.

10. Financing Options

For businesses concerned about upfront costs, many suppliers offer financing options, such as leasing or installment payment plans. These arrangements can make purchasing a 20-ton gantry crane more accessible, especially for small or medium-sized enterprises.

When exploring financing options, carefully review the terms and conditions, including interest rates and repayment schedules, to ensure they align with your financial capacity.

Conclusion

Purchasing a 20-ton gantry crane is a complex process that requires careful consideration of various cost factors. From the initial purchase price to customization, installation, and maintenance, every element contributes to the overall investment. By evaluating these aspects and prioritizing quality, safety, and supplier reliability, you can make an informed decision that ensures the crane meets your operational needs and provides long-term value.

Investing time in research, supplier comparisons, and understanding your specific requirements can help you balance cost considerations with functionality and efficiency. Ultimately, a well-chosen 20-ton gantry crane is not just a purchase but a strategic asset that drives productivity and growth for your business.
